MODEL C 40 (GQ – 40G) Gold

ModelC-40(GQ-40G) Gold
Motor Power5Hp/415V 2880RPM
Cutting Frequency32 times / Min.
Oil7 Ltr
LBH1280x460x700mm
Weight400kg

Capability Chart for II Grade Rebar Steel Cutting Machine
Suitable For Tensile Strenght ≤ 650 N/mm2
Diameter of the Bars8mm10mm12mm16mm25mm32mm
Multiple No. of Bars6Nos4Nos4Nos3Nos1Nos1Nos

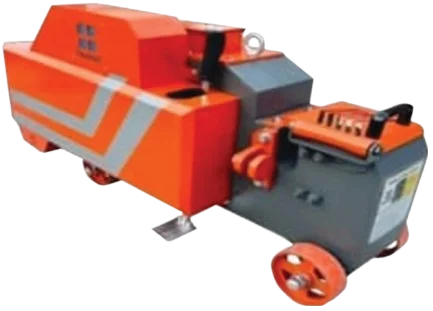

MODEL C 50 (GQ – 50G) Gold

ModelC-50(GQ-50G) Gold
Motor Power7.5Hp/415V 2880RPM
Cutting Frequency32 time / Min
Oil8 Ltr
LBH1300x530x740mm
Weight570kg

Capability Chart for II Grade Rebar Steel Cutting Machine
Suitable For Tensile Strenght ≤ 650 N/mm2
Diameter of the Bars8mm10mm16mm20mm28mm36mm42mm
Multiple No. of Bars6Nos4Nos3Nos3Nos2Nos2Nos1Nos

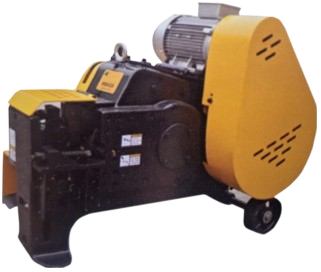

MODEL C-42 (GQ-42D)

ModelC-50(GQ-42D)
Motor Power5HP / 415V 2880RPM
Cutting Frequency48 times / Min
Oil8 Ltr
LBH1100x500x900mm
Weight500kg

Capability Chart for II Grade Rebar Steel Cutting Machine
Suitable For Tensile Strenght ≤ 650 N/mm2
Diameter of the Bars8mm10mm16mm20mm32mm38mm
Multiple No. of Bars6Nos4Nos4Nos2Nos1Nos1Nos

MODEL C-40 (GQ-40)

ModelC-40(GQ-40)
Motor Power4Hp/415V 2800RPM
Cutting Frequency32 time / Min
Oil7 Ltr
LBH1300x530x740mm
Weight400kg

Capability Chart for II Grade Rebar Steel Cutting Machine
Suitable For Tensile Strenght ≤ 650 N/mm2
Diameter of the Bars8mm10mm12mm16mm20mm25mm32mm
Multiple No. of Bars6Nos4Nos4Nos2Nos2Nos1Nos1Nos

MODEL C-50 (GQ-50)

ModelC-50(GQ-50)
Motor Power5Hp/415V 2800RPM
Cutting Frequency28 times / Min.
Oil8 Ltr
LBH1300x530x740mm
Weight520kg

Capability Chart for II Grade Rebar Steel Cutting Machine
Suitable For Tensile Strenght ≤ 650 N/mm2
Diameter of the Bars8mm10mm16mm20mm28mm32mm42mm
Multiple No. of Bars6Nos4Nos3Nos2Nos2Nos1Nos1Nos

MODEL C-40 (GQ-40) Four Square

ModelC-40(GQ-40) Four Square
Motor Power4Hp/415V 2800RPM
Cutting Frequency32 time / Min
Oil8 Ltr
LBH1300x530x740mm
Weight400kg

Capability Chart for II Grade Rebar Steel Cutting Machine
Suitable For Tensile Strenght ≤ 650 N/mm2
Diameter of the Bars8mm10mm16mm20mm28mm32mm
Multiple No. of Bars6Nos4Nos2Nos2Nos2Nos1Nos

MODEL C-50 (GQ-50) Four Square

ModelC-50(GQ-50) Four Square
Motor Power5Hp/415V 2800RPM
Cutting Frequency28 times / Min.
Oil10 Ltr
LBH1300x530x740mm
Weight520kg

Capability Chart for II Grade Rebar Steel Cutting Machine
Suitable For Tensile Strenght ≤ 650 N/mm2
Diameter of the Bars8mm10mm16mm20mm28mm32mm42mm
Multiple No. of Bars6Nos4Nos3Nos2Nos2Nos1Nos1Nos

Looking For A Reliable Supplier?

 At Mechatrix Infotech Pvt Ltd, we aim to build long-term partnerships with our clients in order to ensure a world-class integrated supply chain. We strive to consistently meet extremely high standards for quality, delivery, cost and customer satisfaction for our clients.
